Water-Filled Shade Ball – a Reliable Solution for Stronger Wind Conditions

Shade ball coverage is a technically proven and widely used solution for protecting open water and other liquid surfaces. Reducing evaporation, limiting algae growth, mitigating odours and deterring birds are key benefits that make shade balls a preferred technology in industrial and agricultural applications.

When selecting the appropriate shade ball solution, local wind conditions must be taken into account, as wind loads directly affect the stability of the continuous floating layer formed by shade balls on the liquid surface.

What Problems Do Shade Balls Solve?

The use of shade balls provides effective answers to several interconnected operational and environmental challenges:

• Reduction of evaporation loss
  The floating cover layer can reduce evaporation by up to ~90%, resulting in significant water savings, especially for large-surface reservoirs.

• Limitation of algae growth and water quality degradation
  Shade balls block sunlight from reaching the water, creating an unfavourable environment for algae and aquatic plants.

• Odour reduction
  By limiting the interaction between the liquid surface and the surrounding air, unpleasant odours are significantly reduced by the insulating ball layer.

• Bird deterrence and surface camouflage
  Covering open water surfaces reduces bird activity, which is particularly important at airports and industrial sites.

• Reduction of temperature fluctuations
  The insulating effect of the shade ball layer results in a more stable liquid temperature.

• Improved operational safety
  Shade balls require no maintenance, automatically follow liquid level changes and do not obstruct water extraction or the movement of equipment.

The Role of Wind in Choosing the Right Shade Ball

Standard air-filled shade balls typically weigh around 40 grams and provide an ideal solution under normal conditions, with wind resistance up to approximately 80 km/h.

However, at certain sites — such as open, unobstructed locations or large water surfaces — stronger wind gusts may occur, making alternative solutions necessary.
Air-filled shade balls with a diameter of 100 mm submerge only 15–20 mm into the liquid. Due to their low weight and relatively large exposed surface area, extreme wind gusts may lift and displace them in severe conditions.

For such windy or exposed locations, the most effective solution is the water-filled shade ball

Water-Filled Shade Ball – Increased Stability for Stronger Winds

Water-filled shade balls are designed for applications where wind loads are higher than average. Thanks to a special manufacturing process:

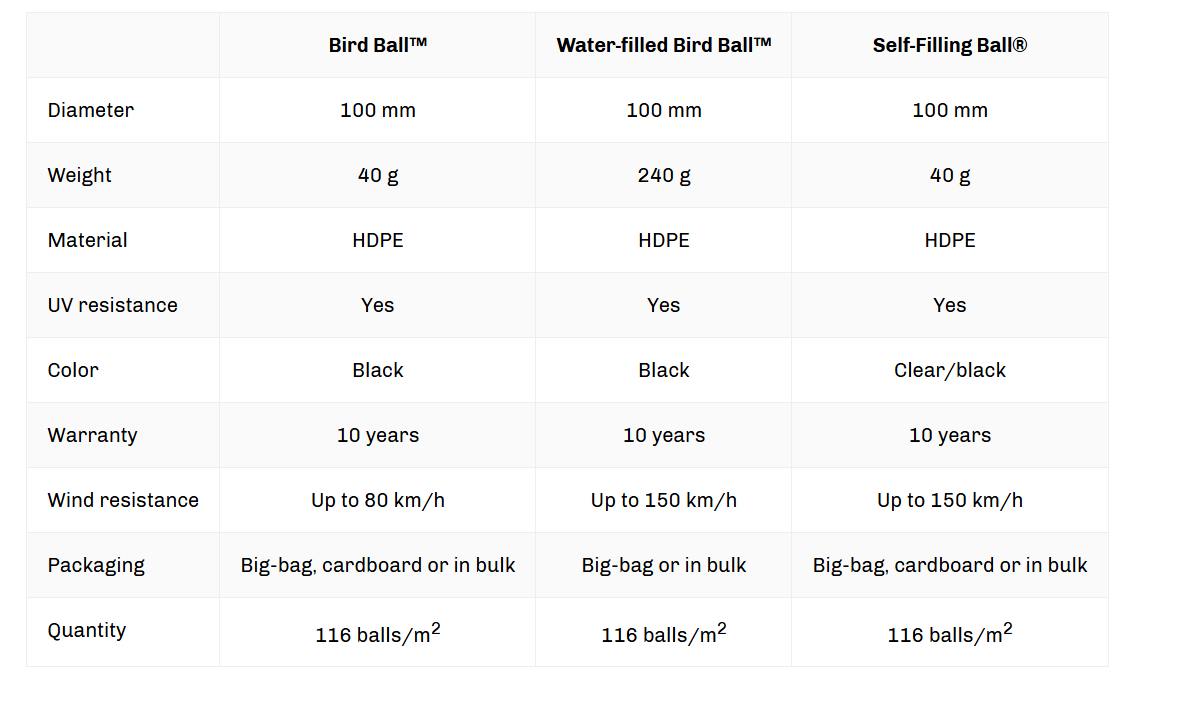

• the weight of each shade ball increases from 40 g to approximately 240 g,

• the diameter remains 100 mm,

• the surface coverage ratio remains ~91%,

• the system remains stable at wind speeds of up to 150 km/h.

The increased weight effectively prevents displacement while maintaining all functional advantages of standard shade balls. These balls are half submerged in the liquid, further enhancing stability.

When Is a Water-Filled Shade Ball Recommended?

Water-filled shade balls are particularly recommended for the following applications:

• wind-exposed reservoirs located on flat terrain,

• high water level reservoirs with low embankments or shallow containment walls,

• large-scale (>1,500 m²) industrial, agricultural or municipal reservoirs,

• liquid manure storage facilities where a stable floating layer can form,

• open water surfaces associated with airports,

• facilities where wind loads consistently exceed the operating range of standard air-filled shade balls.

Not every project requires a water-filled solution — in many cases, standard air-filled shade balls provide a fully adequate and cost-effective option.

Summary

The water-filled shade ball offers a targeted solution wherever reliable, long-term surface coverage is required under stronger wind conditions. The key to a successful system is not overdimensioning, but selecting the technically appropriate solution based on site-specific conditions.

This is where expert support becomes essential.

Shade balls are manufactured at the Euro-Matic Kft. Budapest headquarters, supported by European manufacturing standards and quality assurance.
